"All-In-One" 6-digit Arduino Nixie Clock

The Arduino "All-In-One" Nixie Clock kit drives 6 upright mid sized Nixie Tubes (IN-14, IN-8-2 or Z570M, you can choose) in a traditional "6 in a row" set up. The clock is packed full of features, and at the end of the realtively simple build you will have a beautiful Nixie Clock. Video manuals of the build are available to take you through step by step, and there is an extensive PDF reference manual. The board is small (150mm x 50mm), and is a tried and tested design, with many hundreds of units sold.

This kit is based on an Arduino (Atmel ATMega) micro controller. You don't need to own an Arduino to use this kit! It is self contained and runs without an external Arduino board.

The controller comes pre-programmed. You you can download, modify and upload the open source code if you wish.

This kit is ideal if you want to make an unusual or eye catching clock in a custom case.

Even better: The code is open source, with regular updates and new features.

Tubes are not included. You are able to find reliable, quick and cheap providers on Ebay. If you have a doubt, ask, and we will recommend someone.

The wall power supply is not included. You will need to get an external power supply (9VDC, center positive). Suitable mains wall power adapters are available on Ebay for around $3!

Tools, solder and some connecting wire is not included.

Full kit of parts: You get all of the electronic components on the PCB, as well as parts for mounting on the front panel of your case. You get a RTC (Real Time Clock) module so that the clock can remember the time and date even when turned off.

WiFi kit of parts: You get all of the electronic components on the PCB, as well as parts for mounting on the front panel of your case. You get a WiFi enabled time module which connects to your home WiFi network to retrieve the time. This module also allows you to configure the clock using a browser of a PC, tablet or phone. The clock stays accurate to 1 second, year after year, never needs adjusting, and changes automatically when there is a change in your Daylight Savings Time (DST).

PCB and controller: You get the main PCB and a pre-programmed controller. You will need to source all of the other parts, which are easily available from distributors or Ebay. We don't use very hard to find or special parts.

PCB only: You get the main PCB. You will need to source all of the other parts, which are easily available from distributors or Ebay. We don't use very hard to find or special parts. You will need to flash the controller with our code, or your own code. The code is open source and available on GitHub.

$43

All-In-OneClock for IN-14 - full kit of parts

This is a full kit of parts, including a RTC module, but excluding tubes and mains power adapter.

$49

All-In-One Clock for IN-14 - WiFi kit

Full kit of parts including a WiFi time provider, which connects to your home WiFi network, and gets atomic network time from the Internet.

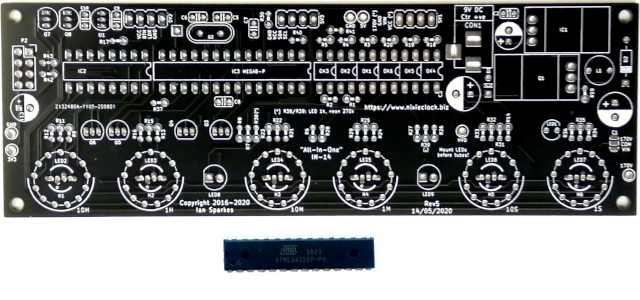

All In One R5 PCB and Controller

$19

All-In-One Clock for IN-14 - PCB/Controller

This is the PCB needed to build the clock, as well as a pre-programmed Atmel micro-controller.

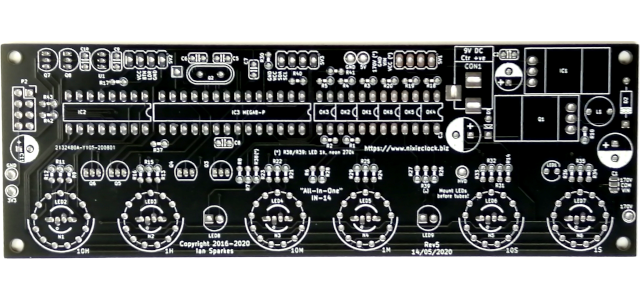

All In One R5 PCB Only

$14

All-In-One Clock for IN-14 - PCB Only

This is the PCB needed to build the clock. You need to flash the controller and get all of the components.

$43

All-In-OneClock for IN-8-2 - full kit of parts

This is a full kit of parts, including a RTC module, but excluding tubes and mains power adapter.

$49

All-In-One Clock for IN-8-2 - WiFi kit

Full kit of parts including a WiFi time provider, which connects to your home WiFi network, and gets atomic network time from the Internet.

All In One R5 PCB and Controller

$19

All-In-One Clock for IN-8-2 - PCB/Controller

This is the PCB needed to build the clock, as well as a pre-programmed Atmel micro-controller.

All In One R5 PCB Only

$14

All-In-One Clock for IN-8-2 - PCB Only

This is the PCB needed to build the clock. You need to flash the controller and get all of the components.

$43

All-In-OneClock for Z570M - full kit of parts

This is a full kit of parts, including a RTC module, but excluding tubes and mains power adapter.

$49

All-In-One Clock for Z570M - WiFi kit

Full kit of parts including a WiFi time provider, which connects to your home WiFi network, and gets atomic network time from the Internet.

All In One R5 PCB and Controller

$19

All-In-One Clock for Z570M - PCB/Controller

This is the PCB needed to build the clock, as well as a pre-programmed Atmel micro-controller.

All In One R5 PCB Only

$14

All-In-One Clock for Z570M - PCB Only

This is the PCB needed to build the clock. You need to flash the controller and get all of the components.
