4-digit Numitron Clock (DA-2000, IV-13, IV-9)
The 4-Digit "Wemos" Numitron Clock kit is a fully Internet enabled clock based on the Wemos D1 R2 mini. The Wemos clock connects to your WiFi and always keeps the time correct. Setting the clock is alse done with a browser using a computer, phone or tablet. Once you have set it up you can forget the clock. It will keep itself right forever.
In the case that WiFi is not available, the clock falls back to the internal RTC (Real Time Clock) time provider, so that the clock always shows the right time.
This kit is a simple to build (with excellent and clear instructions) and should take you only a couple of hours to construct.
The controller comes pre-programmed, and you can update the code using "Over The Air" (OTA) updates. You don't need any special programming equipment!
Note that this clock is currently not open source.
The wall power supply is not included. You will need to get an external USB power supply with a USB "B" ("Micro USB") connector on it. These are the same as used by smartphones, and you almost certainly already have one in a draw at home.
Tools, solder and some connecting wire is not included.
Full kit of parts WITH tubes: You get all of the electronic components on the PCB, as well as the tubes and LEDs.
Full kit of parts (no tubes): You get all of the electronic components on the PCB, but no tubes, which you need to get yourself.
PCBs and controller: You get the main PCB and the display board PCB, and a pre-programmed wemos controller. You will need to source all of the other parts, which are easily available from distributors or Ebay. We don't use very hard to find or special parts.
PCBs only: You get the main PCB and the display board PCB. You will need to source all of the other parts, which are easily available from distributors or Ebay. We don't use very hard to find or special parts. You will need to flash the controller with our firmware.
$120
DA-2000 Numitron Clock - full kit of parts WITH tubes
This is a full kit of parts, including selected and matched New Old Stock DA-2000 tubes, but excluding a mains power adapter. Note that there is an additonal shipping charge included in the price because of the tubes. Pin receptacles are included!
$55
DA-2000 Numitron Clock - full kit of parts WITHOUT tubes
This is a full kit of parts to build the Numitron clock, excluding tubes and mains power adapter. You can add your own tubes (RCA DR-2000 also works). Note that DA-2000, DR-2000, DA-2010 and DR-2010 are compatible. Pin receptacles are included!
$20

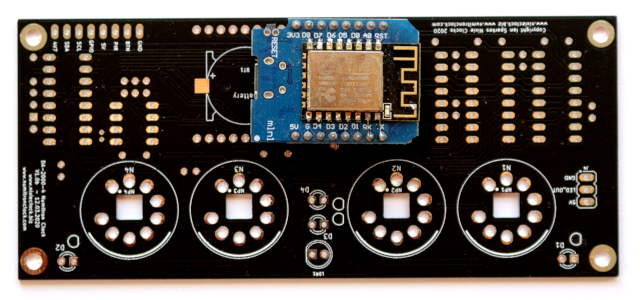

DA-2000 Numitron Clock - PCB/Controller
This is the PCB needed to build the clock, as well as a pre-programmed Wemos micro-controller. You need to add the rest of the parts. See the construction manual for the full BoM. Pin receptacles are NOT included - you can order them below if you need them.
$15

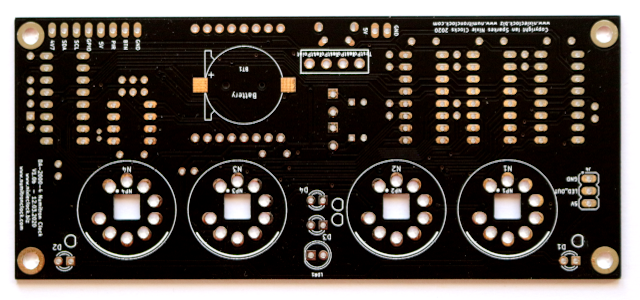

DA-2000 Numitron Clock - PCB Only
This is the PCB needed to build the clock. You need to flash the controller and get all of the components and tubes. See the construction manual for the full BoM. Pin receptacles are NOT included - you can order them below if you need them.
$101

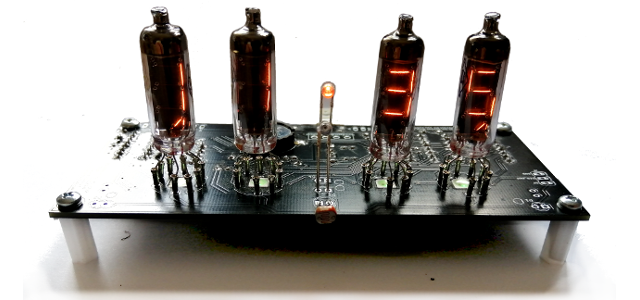

IV-9 Numitron Clock - full kit of parts WITH tubes
This is a full kit of parts, including selected and matched New Old Stock IV-9 tubes, but excluding a mains power adapter. Note that there is an additonal shipping charge included in the price because of the tubes.
$45
IV-9 Numitron Clock - full kit of parts WITHOUT tubes
This is a full kit of parts to build the Numitron clock, excluding tubes and mains power adapter.
$20

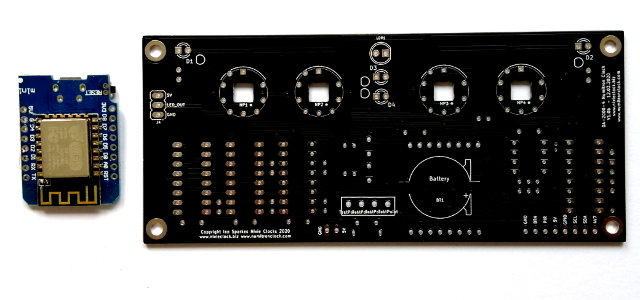

IV-9 Numitron Clock - PCB/Controller
This is the PCB needed to build the clock, as well as a pre-programmed Wemos micro-controller.
$15

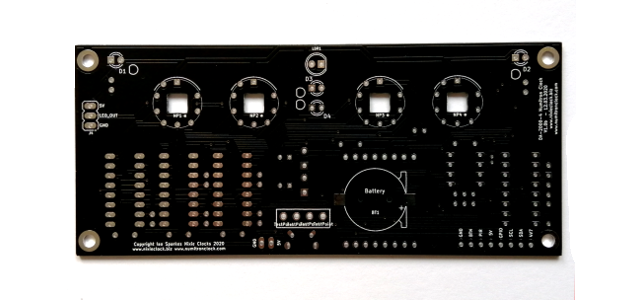

IV-9 Numitron Clock - PCB Only
This is the PCB needed to build the clock. You need to flash the controller and get all of the components and tubes.
$50

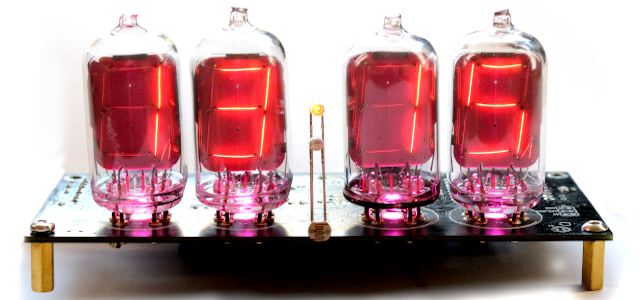

IV-13 Numitron Clock - full kit of parts WITHOUT tubes
This is a full kit of parts to build the Numitron clock, excluding tubes and mains power adapter. You can add your own tubes. Pin receptacles are included!
$20

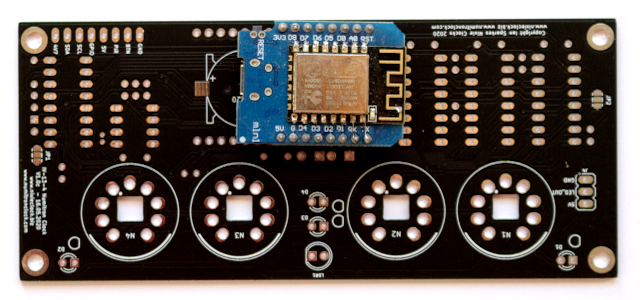

IV-13 Numitron Clock - PCB/Controller
This is the PCB needed to build the clock, as well as a pre-programmed Wemos micro-controller. You need to add the rest of the parts. See the construction manual for the full BoM. Pin receptacles are NOT included - you can order them below if you need them.
$15

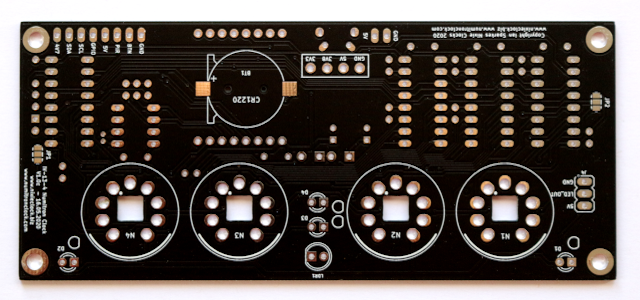

IV-13 Numitron Clock - PCB Only
This is the PCB needed to build the clock. You need to flash the controller and get all of the components and tubes. See the construction manual for the full BoM. Pin receptacles are NOT included - you can order them below if you need them.
$10
Set of Receptacle Pins
Needed for the IV-13 and DA-2000 clocks - the pins of the tube are not soldered onto the board but instead go into "pin receptacles". This option adds a pack of pin receptacles into your order. These are not needed for the IV-9 clock.Check the description of the item you are ordering to know if you need to add this or not.
